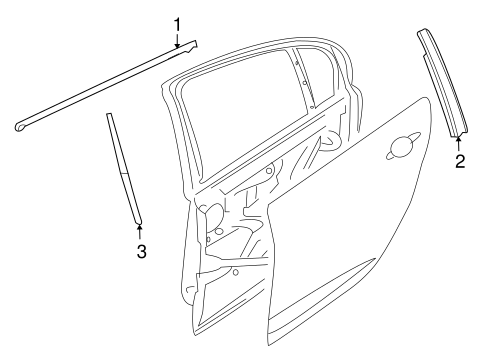

Exterior Trim - Rear Door for 2009 Pontiac G8 #0

92277518 - Body: Belt Weather-strip for GM Image
92277518 - Body: Belt Weather-strip for GM Image Placeholder

1. Passenger Side Rear Door Window Belt Molding 92277518 Belt Weather-strip, Right Enhances the appearance of your vehicle's door window.

92206502 - Body: Belt Weather-strip for GM Image
92206502 - Body: Belt Weather-strip for GM Image Placeholder

1. Belt Weather-Strip 92206502 Belt Weather-strip, Left


92255725 - Body: Applique for GM Image
92255725 - Body: Applique for GM Image Placeholder

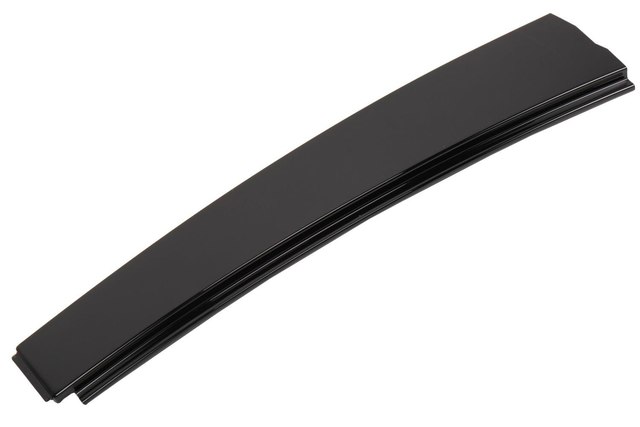

2. Pitch Black Gloss Driver Side Rear Door Window Frame Front Applique 92255725 Applique, Left Front. Helps protect and enhance the appearance of your vehicle's door.


92255726 - Body: Applique for GM Image
92255726 - Body: Applique for GM Image Placeholder

2. Pitch Black Gloss Passenger Side Rear Door Window Frame Front Applique 92255726 Applique, Right Front. Helps protect and enhance the appearance of your vehicle's door.

92233115 - Body: Division Channel for GM Image
92233115 - Body: Division Channel for GM Image Placeholder

3. Pitch Black Gloss Passenger Side Rear Door Stationary Window Channel 92233115
Division Channel, Right Rear. Helps provide a seal for your vehicle's window. Helps guide the window while it is being operated.

92233116 - Body: Division Channel for GM Image
92233116 - Body: Division Channel for GM Image Placeholder

3. Pitch Black Gloss Driver Side Rear Door Stationary Window Channel 92233116 Division Channel, Left Rear. Rear. Helps provide a seal for your vehicle's window. Helps guide the window while it is being operated.

  • Love
Reactions: jonup

·
Premium Member
Joined
·
9,088 Posts
The vertical pieces are called appliques. Will look later for removal instructions.

  • Like
Reactions: jonup and SRQTERRY

·
Premium Member
Joined
·
9,088 Posts
Could only locate removal instructions for the inside applique.


·
Premium Member
Joined
·
9,088 Posts
Exterior Trim - Front Door for 2009 Pontiac G8 #0


1. Passenger Side Door Window Belt Reveal Molding 92277514 Belt Weather-strip, Right Enhances the appearance of your vehicle's door window.

92277513 - Body: Belt Weather-strip for GM Image
92277513 - Body: Belt Weather-strip for GM Image Placeholder

1. Driver Side Door Window Belt Reveal Molding 92277513 Belt Weather-strip, Left Enhances the appearance of your vehicle's door window.


92288491 - Body: Applique for GM Image
92288491 - Body: Applique for GM Image Placeholder

2. Pitch Black Gloss Front Driver Side Door Window Frame Rear Applique 92288491 Applique, Left Helps protect and enhance the appearance of your vehicle's door.

92288492 - Body: Applique for GM Image
92288492 - Body: Applique for GM Image Placeholder

2. Pitch Black Gloss Front Passenger Side Door Window Frame Rear Applique 92288492 Applique, Right Helps protect and enhance the appearance of your vehicle's door.


Attachments

·
Premium Member
Joined
·
9,088 Posts
Gotcha. The applique around the rear "quarter" window glass. Diagram only list the glass. Window, Rear S/D Sta (W/Rear S/D Wdo W/Str) 92254935 Fixed Glass, Left Replaces: 92235191, 92262296.

  • Like
Reactions: jonup and JAM
